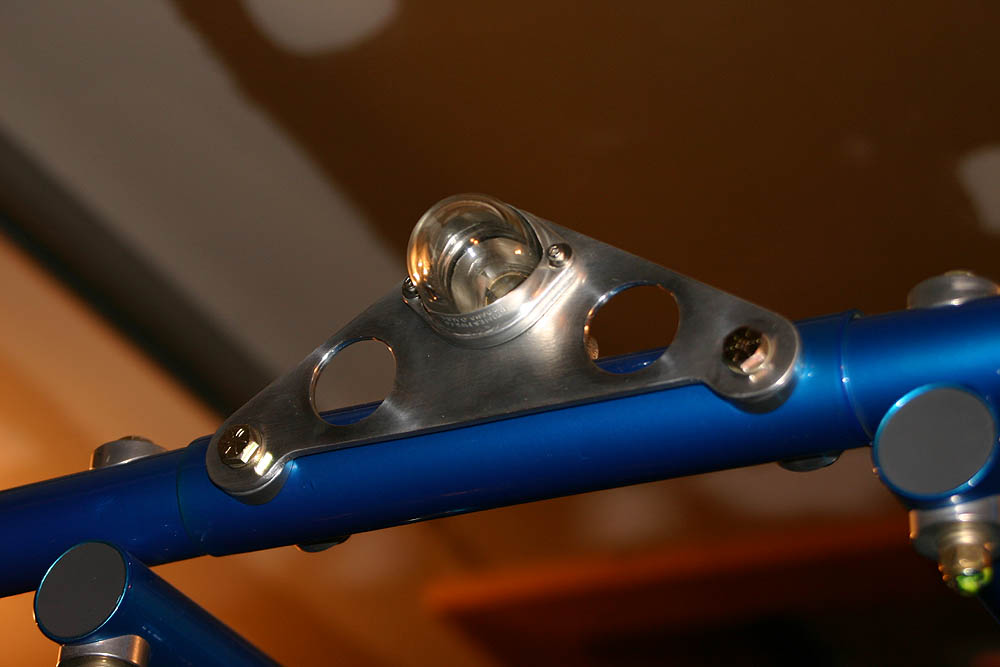

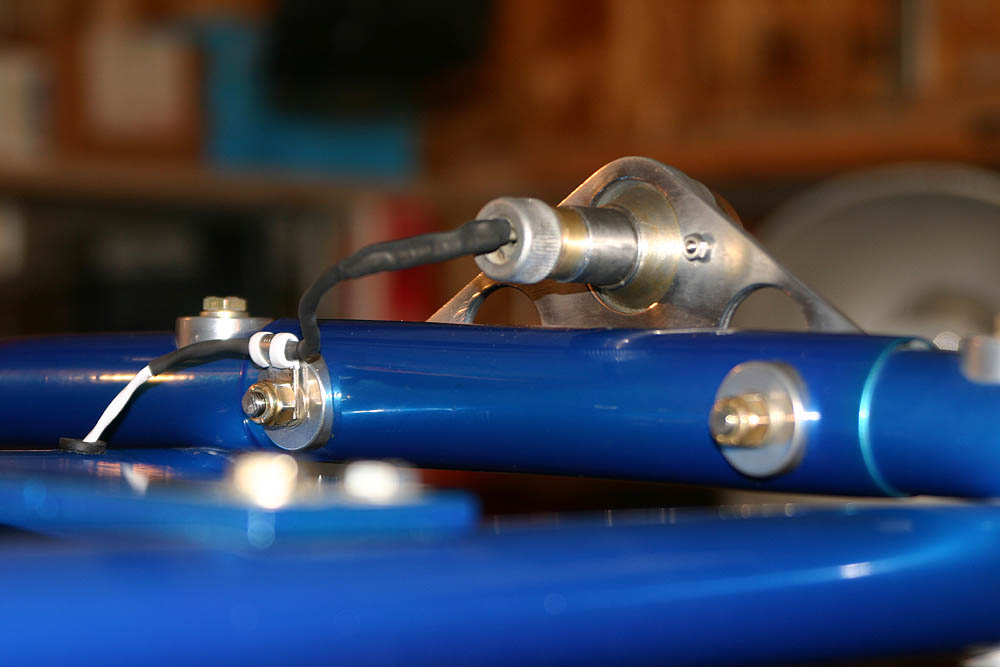

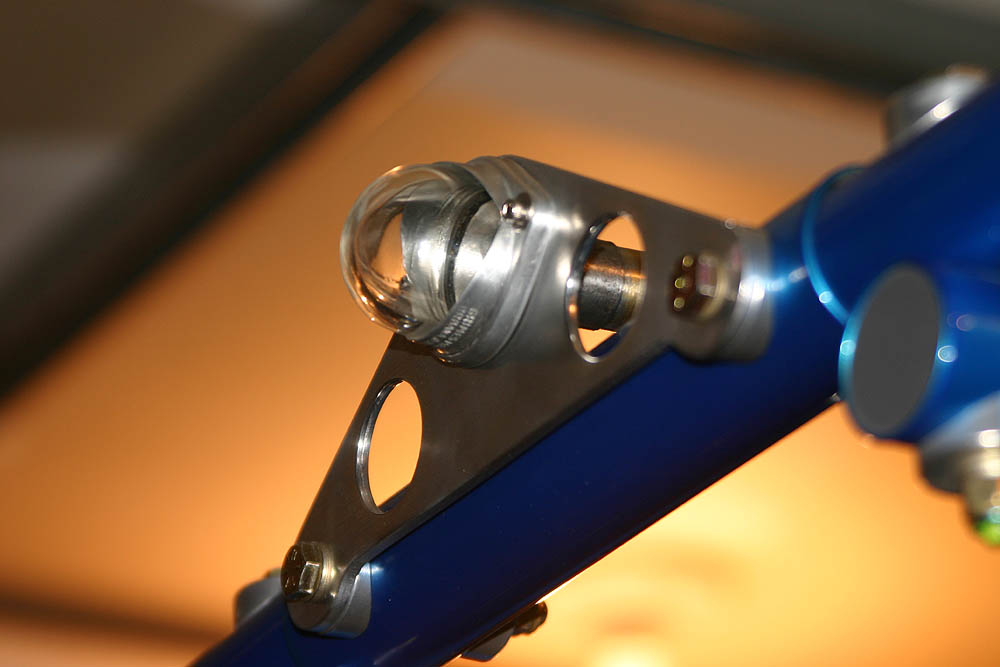

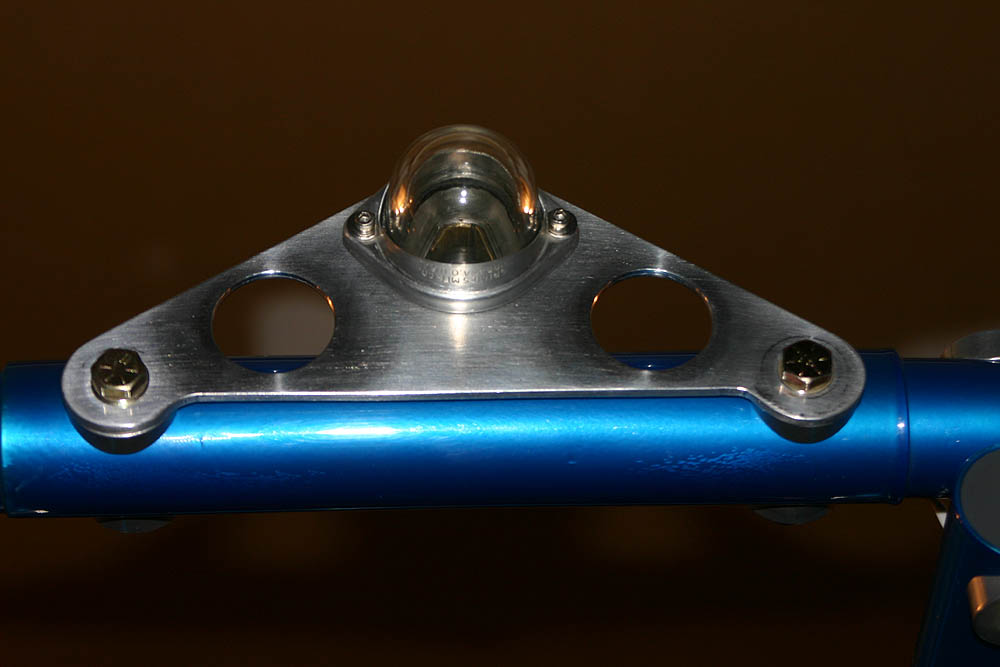

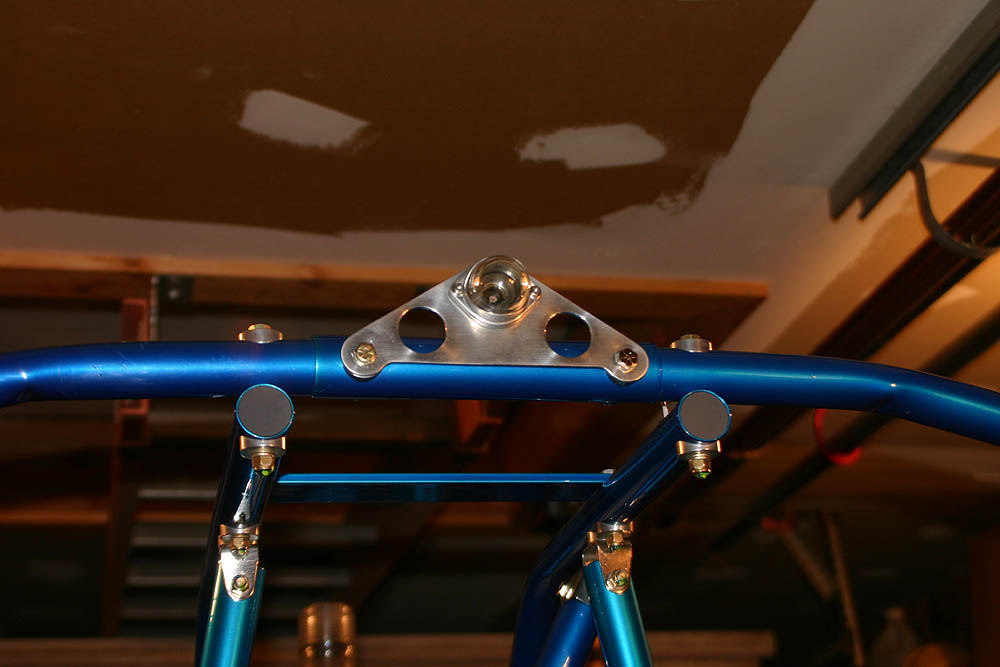

Thanks to Butch Lottman for sharing some photos and reporting about his latest modification: the addition of a Grimes tail light. The material was 3003 .125 aluminum flat stock fabricated into the bracket he made to utilize the saddles at the upper prop guard. He tied the tail light into the strobe/position light circuit. He also removed the incandescent bulb which was pulling over 2 amps and installed an LED rated at .62 amps.
Below are a few photos. Click on a photo to view it full size and click on CONTINUED to view all of the photos:
